外刮刀式自清洗过滤器
发表时间:2018-06-19 10:00:23
![](/uploads/allimg/180606/1-1P606152951.jpg)

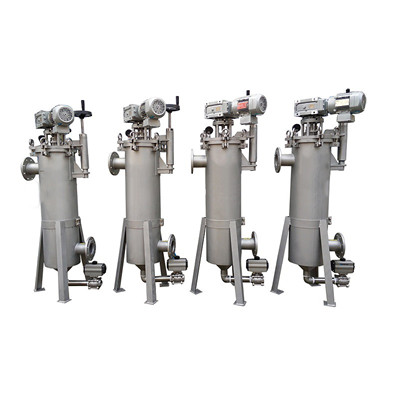

外刮刀式自清洗过滤器
工作原理
当液体流经过滤器滤网时,杂质被滤网拦截在表面,启动刮刀清除表面杂质,通过排污口排出,实现自清洗过滤。
★ 全自动运行,24小时连续在线过滤,终结繁重的滤元更换清洗工作
★ 不产生一次性抛弃的过滤耗材,节约耗材成本及环保处理成本
★ 采用金属薄片刮刀,刮除耗材成本及环保处理成本
★ 顶级品质的V-SLOT滤元,缝隙精准,表面极致平滑,易刮净,强度高,长寿命
★ 过滤压损极小,流量稳定,节省管路能耗,利于工艺连续稳定
★ 密闭过滤,防止危险性物料泄露,有利于安全生产
★ 排放废液杂质浓度高并可回收,避免高价值物料的损失
★ 多种模块组合及自动化模式可选,满足各种过滤应用要求
★ 标配国际知名品牌减速电机,极高可靠性,长使用寿命
参数
★ 最大流量:82m3/h(100μm)
★ 过滤精度:50~3000微米。
★ 最大粘度:50000 厘泊
★ 材质:不锈钢304,316L等。
★ 最高工作温度:160OC 。
★ 最高工作压力:1.0Mpa。
★ 排污控制:压差控制或时间控制
★ 电机功率:涡轮蜗杆减速电机100W-250W 三相 380V
Technical Feature
Outside Scraping Self-Cleaning Filter removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for normal viscous liquids.
1. Automatic 24-hour on-line filtration, no frequent changing out and cleaning
2. No disposable filter media consumption, save filter media cost and environment cost.
3. Stainless steel scraping blade, good impurity removing performance .
4. Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap.
5. Very low pressure drop, stable flow rate, save energy consumption.
6. back-flushing function can be added to help clean the filter element.
7. Close filtration, no dangerous liquid leakage, good for safe production.
8. Discharge waste liquid with high impurity concentration, avoid valuable liquid loss.
9. Various modular combination and automation modes available, meet different filtration needs.
10. Equiped with world-famous gear motor, high reliability and long service life .
11. Assitant lifting device , only one operator can open and close the filter cover.
Specification
★ Flow rate max:82m3/h(100μm)
★ Filtration precision:50~3000 μm
★ Viscosity:50000 cps
★ Material:SS 304,316L etc
★ Work temperature max :160OC
★ Work pressure max:1.0Mpa
★ Blow -off control:pressure difference control and time control
★ Motor:worm geared motor 100W-250W; 380V
